Description

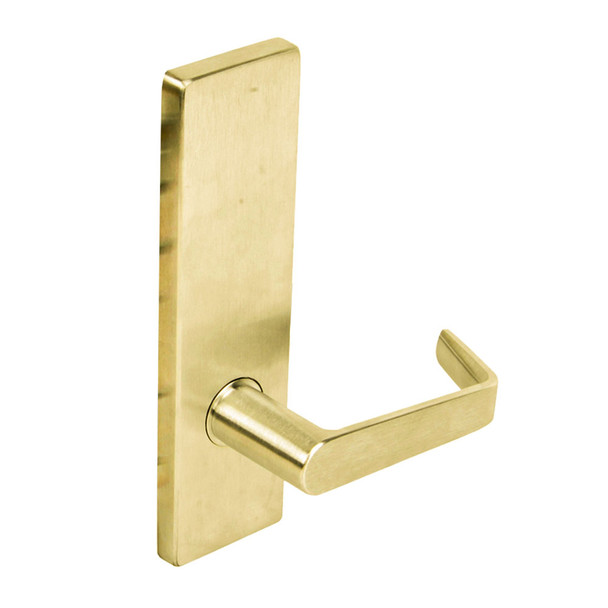

The Falcon TP95E D 606 is a mortise lock built for high-traffic commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines security with durability, featuring a two-piece stainless steel latch bolt and a one-inch deadbolt with saw-resistant rollers. It solves the need for dependable access control in demanding institutional settings.
The lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable SFIC core for quick re-keying without removing the lock body. Right-hand is standard; left-hand is available and reversible in the field. As an authorized Allegion dealer, E.D. Locks provides expert support, keying options, and electrified function availability (12 or 24 VDC). Contact sales@edlocks.com or 1-877-207-6067 for specification details and custom configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: "G" standard cylinder, "A" interchangeable core
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
- Electrified Functions: Available 12 or 24 VDC
