Description

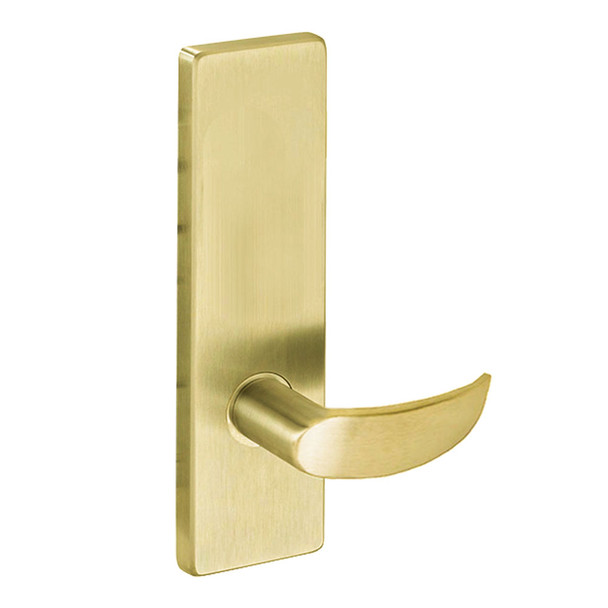

The Falcon TP95E A 606 is a mortise lock built for commercial environments including offices, hospitals, and educational facilities. It combines reliable security with durability to handle constant daily use without failure. The interchangeable core design enables quick re-keying in the field, making maintenance and retrofits straightforward and cost-effective.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards. It's compatible with SFIC products from other manufacturers. As an authorized Falcon dealer, E.D. Locks provides expert guidance on specification, keying options, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: TP95E A 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway standard; A keyway on I/C cylinder
- Electrified: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
