Description

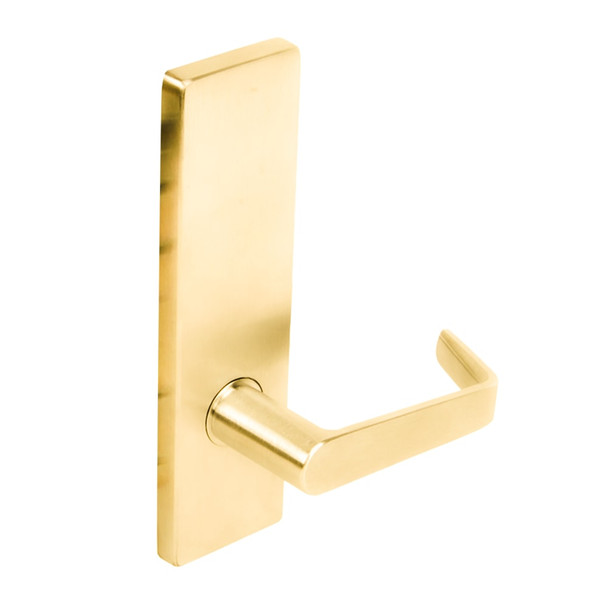

The Falcon TP95E D 605 is a mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines robust security with dependable performance, featuring an interchangeable core for quick re-keying and compatibility with SFIC products from other manufacturers, solving costly downtime during key changes.
The TP95E D 605 accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label requirements. As an authorized Falcon dealer, E.D. Locks provides expert guidance on specification, handing options, and keying configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support and fast delivery.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin interchangeable core
- Keys: Two nickel silver keys furnished standard
- Keyways: G keyway standard on standard cylinder; A keyway standard on I/C cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" diameter hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA Rating: 156.13, Series 1000
- UL Rating: 3 hour A label
