Description

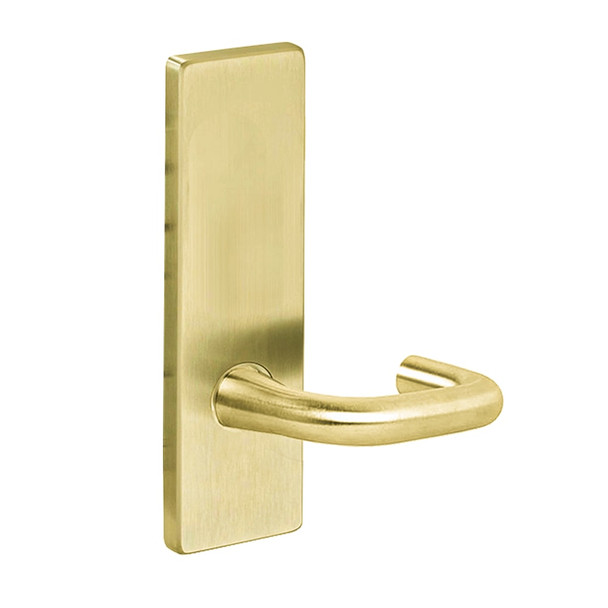

The Falcon TP95E S 606 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines affordability with proven dependability, featuring a two-piece stainless steel latch bolt and 1-inch throw deadbolt with saw-resistant rollers to withstand constant daily use without compromise.
The lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable core (SFIC compatible) for quick, field-reversible re-keying. Available in electrified 12 or 24 VDC versions and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A ratings. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, finish selection, and installation support.
Specifications
- Brand: Falcon (Allegion)
- Model: TP95E S 606
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection, mechanical anti-friction
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin for I/C
- Keyways: "G" standard (standard cylinder), "A" standard (I/C cylinder)
- Keys: Two nickel silver keys furnished standard
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Handing: Right hand standard; left hand optional, reversible in field
- Electrified Options: 12 or 24 VDC available
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
