Description

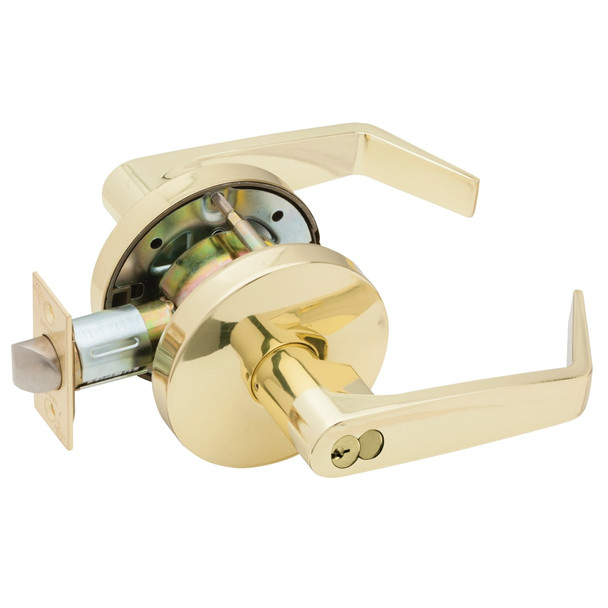

The Falcon W511HD D 605 is a cylindrical lock designed for lower-traffic doorways in government, retail, industrial, and multi-family buildings. It solves the need for affordable, reliable security without compromising on quality or compatibility with standard commercial door hardware.
This lock accepts 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, making it flexible for various keying needs. Installation fits standard 1-3/8" to 1-3/4" doors with 2-3/4" backset. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, master keying options, and handing specifications.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: Six-chamber pinning, removable for rekeying; 6- or 7-pin interchangeable core options available
- Cylinder Housing: Solid brass with stainless steel springs
- Keys: Two nickel silver keys included standard
- Keyways: "G" standard on Falcon cylinders; "A" standard on I/C core; Schlage "C" available with master key
- Compatible Cylinders: Falcon, Schlage, Corbin-Russwin, Yale, Sargent
- Trim: Heavy wrought brass or bronze roses with steel inserts; pressure-cast zinc levers
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour door assemblies
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Handing: Non-handed
