Description

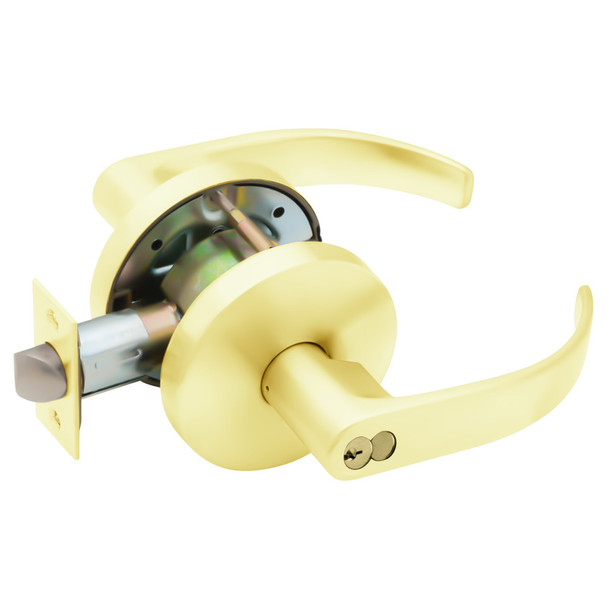

The Falcon W511HD Q 605 is an affordable cylindrical lock designed for lower-traffic commercial doorways in government, retail, industrial, and multi-family buildings. It combines solid construction with budget-friendly pricing, offering conventional cylinders and small-format interchangeable cores compatible with SFIC products from other manufacturers.
This non-handed lock fits standard 1-3/8" to 1-3/4" doors with 2-3/4" backset (2-3/8" available). It accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, and supports master keying on Falcon and Schlage C keyways. Contact an authorized E.D. Locks specialist at 1-877-207-6067 or sales@edlocks.com for expert keying guidance and compatibility confirmation.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: 6-pin conventional or 6/7-pin interchangeable core; removable for rekeying
- Keyways: G (standard), A (I/C core), Schlage C (optional with master key)
- Latch: 1/2" stainless steel projection; UL listed for 3-hour door assemblies
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Trim: Heavy wrought brass or bronze roses; zinc lever handles
- Keys: Two nickel silver keys furnished standard
- Handing: Non-handed
