Description

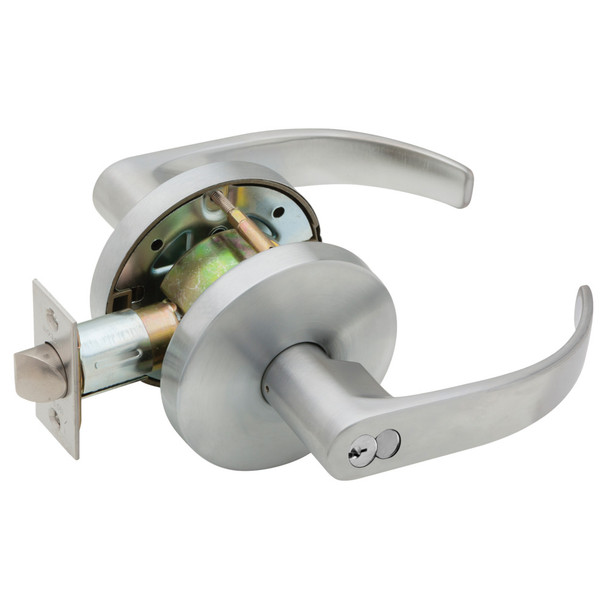

The Falcon W511HD Q 626 is an affordable cylindrical lock designed for lower-traffic commercial doorways in government, retail, industrial, and multi-family buildings. It combines solid construction with flexible configuration options, offering both lever and knob styles with two rose diameters to match most door trim.
This lock accommodates standard 6-pin cylinders and small format interchangeable cores (SFIC) compatible with Falcon, Schlage, Corbin-Russwin, Yale, and Sargent products. It handles door thicknesses of 1-3/8" to 1-3/4" and installs with a standard 2-3/4" backset. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying, masterkeying, and installation guidance from an authorized Falcon dealer.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: 6-pin removable cylinder; 6- or 7-pin interchangeable core available
- Keyways: G keyway standard on Falcon cylinders; A keyway standard on I/C core; Schlage C keyway available
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour fire door assemblies
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Trim: Heavy wrought brass or bronze roses with steel inserts; pressure-cast zinc levers
- Handing: Non-handed
- Keys Furnished: Two nickel silver keys standard
