Description

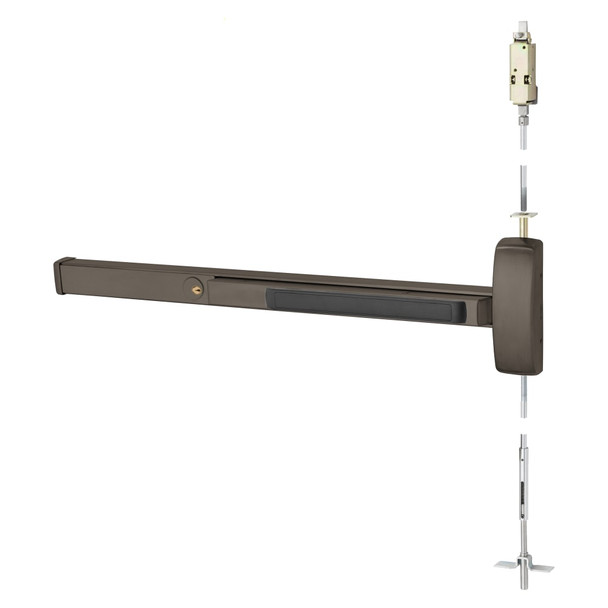

The Sargent 80 Series exit device is a heavy-duty panic hardware solution for metal doors in commercial and institutional buildings. Designed for environments demanding maximum durability and security, it exceeds ANSI/BHMA Grade 1 standards and features modular construction with minimal moving parts. This RHR (right-hand reverse) configuration suits right-swing doors opening away from you.
Compatible with 1-3/4" minimum thickness metal doors up to 96" height, this device uses E, F, J, or G rails depending on door width (24" to 48"). Factory cutting available upon request. As an authorized Sargent dealer, E.D. Locks offers expert guidance on rail selection, keying options, and electric add-ons like delayed egress and alarm features. Contact sales@edlocks.com or 1-877-207-6067 for application support and fast delivery.
Specifications
- Model: 16-AD8674F RHR 10BE
- Series: Sargent 80
- Handing: RHR (Right-Hand Reverse)
- Compatible Door Thickness: 1-3/4" minimum (44mm)
- Door Width Range: 24" to 48"
- Maximum Door Height: 96"
- Device Centerline: 41" from finished floor (standard), 38" for elementary schools
- Center Case Dimensions: 8-3/8" x 2-5/8"
- Pushbar Projection (Neutral): 3"
- Pushbar Projection (Depressed): 2-1/8"
- Top Bolt: Stainless steel
- Strike Configuration: 650 top and 606 bottom (panic and fire-rated)
- Dogging: Hex key standard (cylinder dogging available)
- Electric Options: Alarm, beacon, photoluminescent coating, illuminated touchpad, latch monitoring, delayed egress, and more
