Description

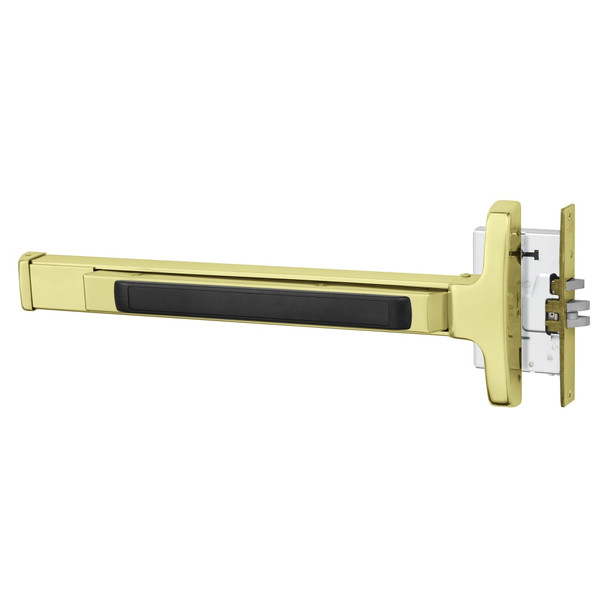

The Sargent 80 Series exit device is a heavy-duty push bar system designed for wood and metal doors in commercial and institutional facilities. It solves the need for ANSI/BHMA Grade 1 compliant egress hardware that withstands high-cycle use without maintenance, ideal for buildings requiring durable, long-lasting security solutions.
This left-hand reverse (LHR) model installs on 1-3/4 inch thick doors with 4-1/2 inch minimum stiles and fits E rail openings from 24 to 32 inches. Modular construction minimizes moving parts and simplifies upkeep. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration, keying, and delayed egress or electric latch retraction options.
Specifications
- Brand: Sargent
- Model: 194356-8343E LHR 3
- Configuration: Rim-mounted exit device
- Handedness: Left-hand reverse
- Door thickness: 1-3/4 inch (44mm)
- Minimum stile width: 4-1/2 inch
- Rail type: E Rail
- Door width range: 24 to 32 inches
- Standard opening: 32 inches (no cutting required)
- ANSI/BHMA certification: Grade 1
- Door types: Wood or metal
