Description

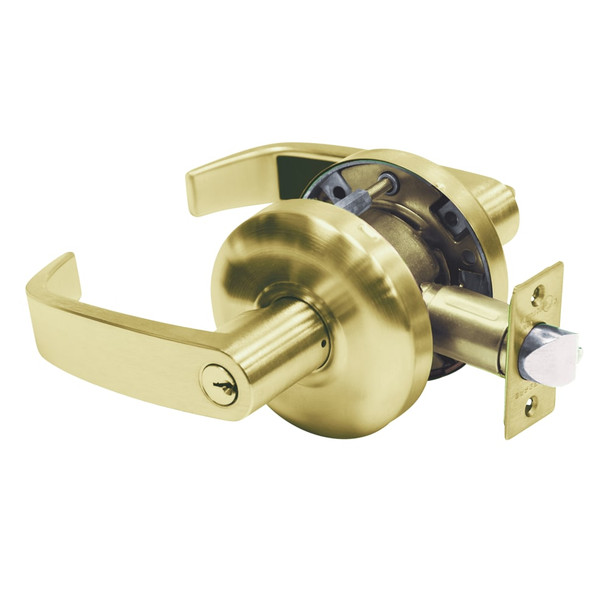

The Sargent 6500 Series 28-65G04 KL is a Grade 2 standard duty key-in-lever lock meeting ANSI A156.2 requirements. Built for commercial and institutional doors 1-3/8" to 1-4" thick, it delivers reliable keyed access control with a universal hand design that fits any opening without modification.
This lock fits standard 2-3/4" backsets (2-3/8" optional) and includes a 6-pin brass cylinder with LA keyway and two nickel silver keys. Compatible with 600, 808, and 505 strike options in brass or stainless steel. Contact our experts at sales@edlocks.com or 1-877-207-6067 for finish selection, keying assistance, and installation support as an authorized Sargent dealer.
Specifications
- Model: 28-65G04 KL 4
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" standard; 2-3/8" optional
- Latch Throw: 1/2"
- Cylinder: 6-pin brass, LA keyway, includes 2 keys
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Housing: Steel zinc dichromate finish
- Hand: Universal
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Minimum Stile: 4-1/2"
