Description

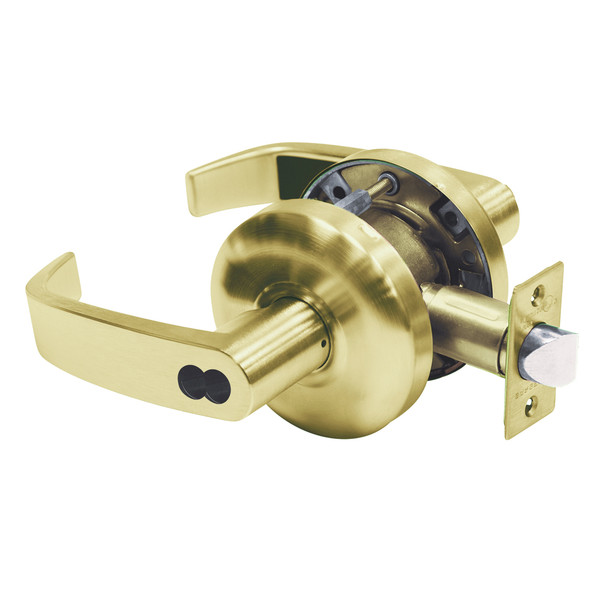

The Sargent 6500 Series is a standard duty cylindrical key-in-lever lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for commercial and institutional doors, this lock provides reliable security and smooth operation for 1-3/8" to 1-3/4" thick doors, solving the need for durable, code-compliant hardware on interior and exterior applications.
This lock features a 2-3/4" standard backset (2-3/8" optional), universal hand design, and brass 6-pin cylinder with LA keyway. Compatible with multiple strike options (600 Curved Lip standard, 808 ANSI, or 505 Full Lip) and available in six finishes. As an authorized Sargent dealer, E.D. Locks provides expert guidance on backset selection, hand configuration, and finish matching. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for help specifying the right configuration.
Specifications
- Door thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Cylinder: Brass, 6 pin, LA keyway standard
- Latch: Brass, 1/2" throw
- Keys: Two nickel silver
- Hand: Universal, not handed
- Minimum stile: 4-1/2"
- Available finishes: 3, 4, 10, 10B, 26, 26D
- Strike options: 600 Curved Lip (brass or stainless), 808 ANSI Curved Lip, 505 Full Lip
