Description

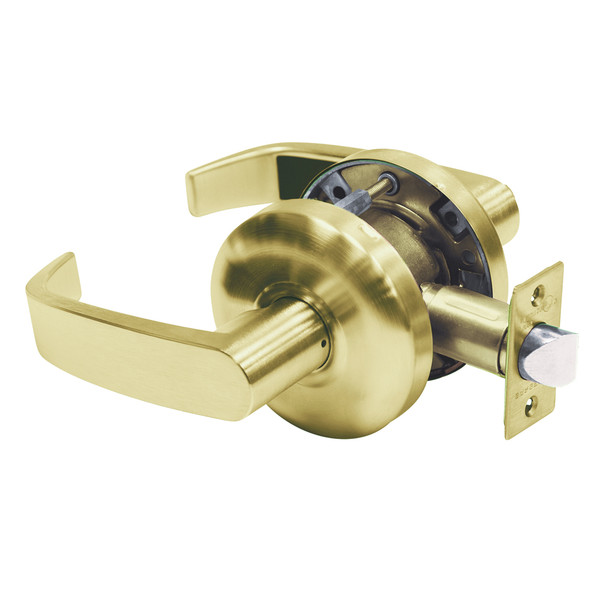

The Sargent 6500 series is a standard-duty key-in-lever lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for commercial and institutional doors 1-3/8" to 1-3/4" thick, this universal-hand lock provides reliable access control and security for offices, schools, and facilities requiring durable cylindrical locks.
This lock accommodates standard 2-3/4" backset with optional 2-3/8" configuration, mounts to ANSI A115.2 (161) modified door preparation, and ships with two nickel silver keys and a 6-pin LA keyway brass cylinder. Available in multiple finishes and strike options. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for specification confirmation, finish selection, and expert installation guidance.
Specifications
- Door thickness: 1-3/8" to 1-3/4" (35-44mm)
- Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional
- Housing: Steel, zinc dichromate finish
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8" (57x29mm)
- Latch: Brass, 1/2" (13mm) throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Hand: Universal, not handed
- Strike options: 600 curved lip (brass or stainless), 808 ANSI curved lip, 505 full lip
- Finishes: 3, 4, 10, 10B, 26, 26D
- Door prep: ANSI A115.2 (161) modified, 4-1/2" minimum stile
- Grade: ANSI A156.2 Series 4000 Grade 2
