Description

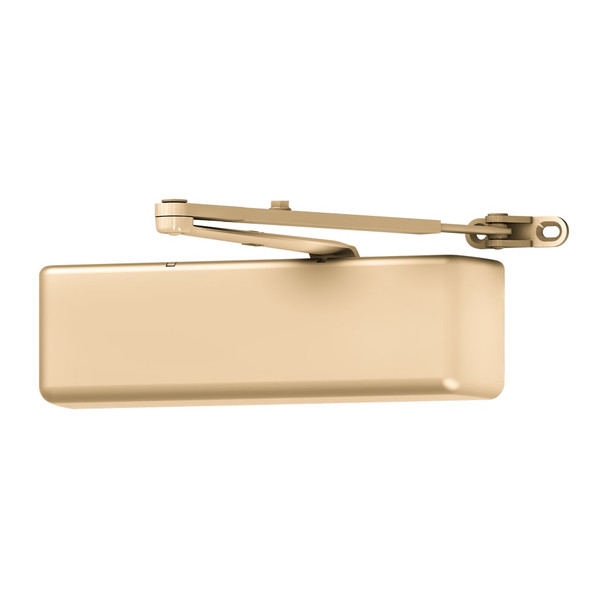

The LCN 4040XP-LONG is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic commercial environments. It delivers 44% increased bearing load capacity, the strongest pinion available at 3/4" journal diameter, and a V-Shield seal rated 20% longer life. Ideal for facilities managers and contractors managing demanding door control requirements.
This non-handed closer installs on hinge side, top jamb, or parallel arm mounting, and adjusts for interior doors to 5'0" and exterior doors to 4'0". It's UL and cUL listed to ANSI A156.4 Grade One and works with all 4040 accessories. For expert guidance on finish options, corrosive-environment primers, and ADA compliance, contact our team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: 4040XP-LONG RH US3
- Type: Surface-mounted door closer
- Bearing load capacity: 44% increase over standard
- Pinion journal diameter: 3/4"
- Bearing width: 5/8"
- Seal technology: V-Shield with 20% extended life
- Fluid type: All Weather
- Interior door adjustment range: Up to 5'0"
- Exterior door adjustment range: Up to 4'0"
- Mounting: Hinge side, top jamb, or parallel arm (either swing)
- Hand: Non-handed
- Material: Cast iron body, forged steel arm, double heat-treated steel pinion
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Finish options: Standard powder coat, optional plated finish on metal cover/arm/fasteners, optional SRI primer (powder coat only)
- Accessories: Compatible with all 4040 accessories
