Description

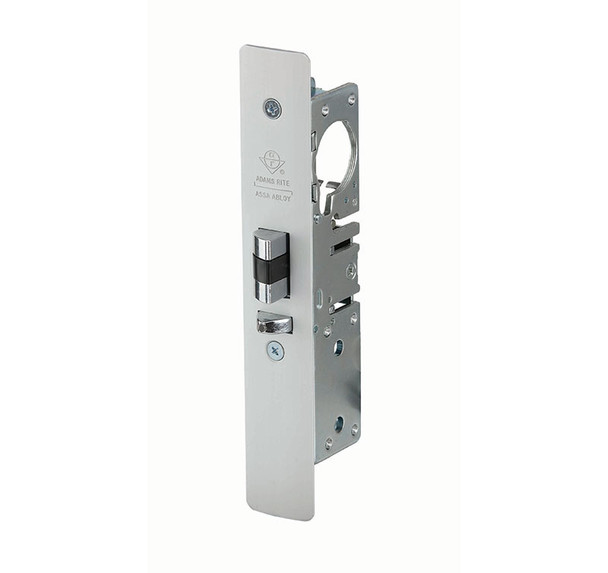

The Adams Rite 4530 is a standard duty mortise deadlatch designed for buildings requiring flexible traffic control. Hospitals, banks, stores, and other facilities use it to enable free entrance during business hours and exit-only access at other times. The reverse-turn bolt holdback feature keeps the latchbolt retracted for two-way traffic without removing the cylinder.
Available in three cylinder backsets (7/8", 31/32", 1-1/8") and compatible with any standard mortise cylinder featuring an MS cam. Handing is reversible without special tools. Each lock ships with a 4901-01 strike for flat jambs and mounting hardware. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on backset selection and installation specifications.
Specifications
- Brand: Adams Rite
- Model: 4530
- Type: Standard Duty Mortise Deadlatch
- Case Dimensions: 1" x 5-13/16" (depth varies by backset)
- Latchbolt: 1/2" x 1" with 1/2" throw
- Faceplate: 1-1/4" x 7-13/32"
- Cylinder Backsets: 7/8", 31/32", 1-1/8"
- Cylinder Compatibility: MS cam standard mortise cylinders
- Case Material: Steel with corrosion-resistant plating
- Auxiliary Bolt: Hardened steel, prevents loiding
- Strike Included: 4901-01 for flat jamb
- Handing: Reversible without special tools
- Shipping Weight: 1-1/4 lbs
