Description

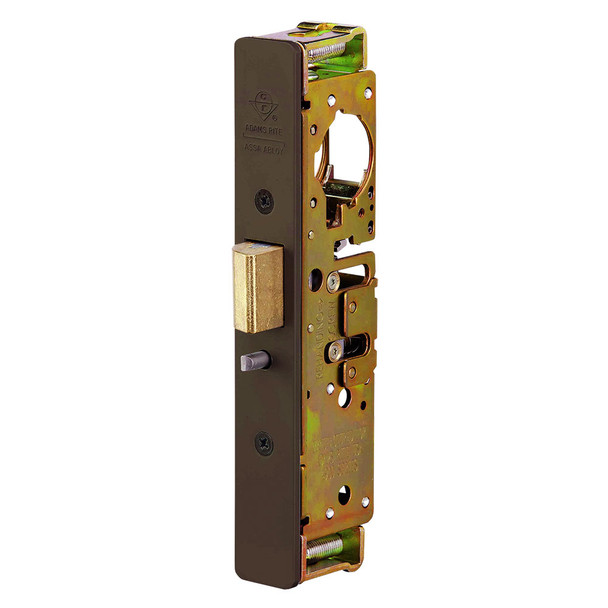

The Adams Rite 4900 Series Mortise Deadlatch delivers flexible traffic control for commercial and institutional doors. Reverse-key operation holds the bolt retracted, enabling free entrance or exit-only modes at different times. A stainless steel auxiliary latch pin prevents loiding and case-knife entry, while the solid brass bolt is easily reversible with a screwdriver.
This mortise lock retrofits existing 4500/4700 preparations and replaces any MS1850A or MS1850S deadbolt without stile modification. Available in three cylinder backsets (31/32", 1-1/8", 1-1/2") with both flat and radius faceplates. As an authorized Adams Rite dealer, E.D. Locks provides expert selection and installation support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Adams Rite
- Model: 4900
- Mortise deadlatch with bolt holdback function
- Cylinder backsets: 31/32", 1-1/8", 1-1/2"
- Case: Steel with corrosion-resistant plating, 7/8" x 5-13/16"
- Latch bolt: 5/8" x 1" x 5/8" throw, solid brass, reversible
- Auxiliary latch pin: Stainless steel deadlock
- Faceplates: 1" x 6-7/8", flat and radius supplied
- Includes strike (4902 for flat jamb), machine screws
- Cylinders, handles, paddles ordered separately
