Description

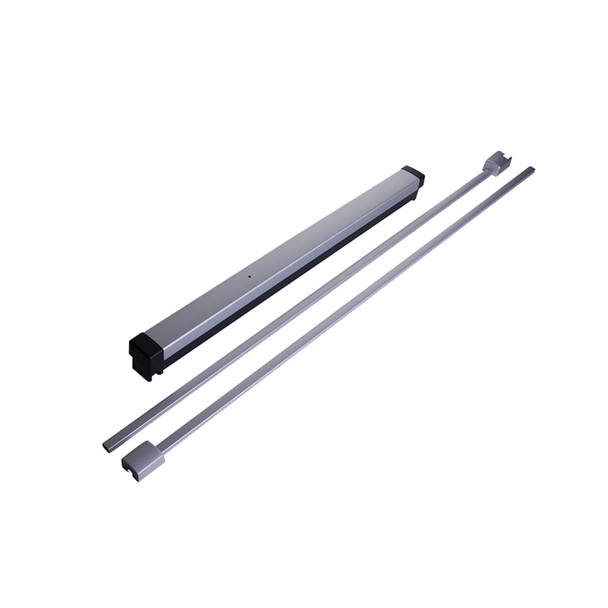

The Adams Rite 8111-42 is a heavy-duty exit device designed for hollow metal and wood doors up to 42 inches wide. Built with an extruded aluminum pushbar, this non-handed device solves emergency egress requirements for commercial buildings, retail spaces, and institutional facilities where reliable panic hardware is essential.
The 8111-42 fits standard 1 3/4 inch to 2 1/4 inch door thickness and adjusts from 30 to 44 inches in height. It accommodates doors up to 8 feet tall (optional Tall Door Kit available for 10-foot doors). Field-reversible lever entry trim and standard hex-key dogging provide flexible installation options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, finish selection, and compatibility with your door specifications.
Specifications
- Pushbar Length: 42 inches (field cuttable to smaller widths)
- Bar Height Adjustment: 30 to 44 inches
- Maximum Door Height: 8 feet (with bar at 40-44 inches)
- Door Thickness: 1 3/4 inch to 2 1/4 inch
- Minimum Stile Width: 3 3/4 inches
- Projection: 2 15/16 inch fully extended, 1 15/16 inch dogged
- Material: Extruded aluminum pushbar, anodized or clad finishes
- Handing: Non-handed, field-reversible entry trim
- Dogging: Standard hex-key (optional cylinder or electric available)
- Warranty: Five-year limited
