Description

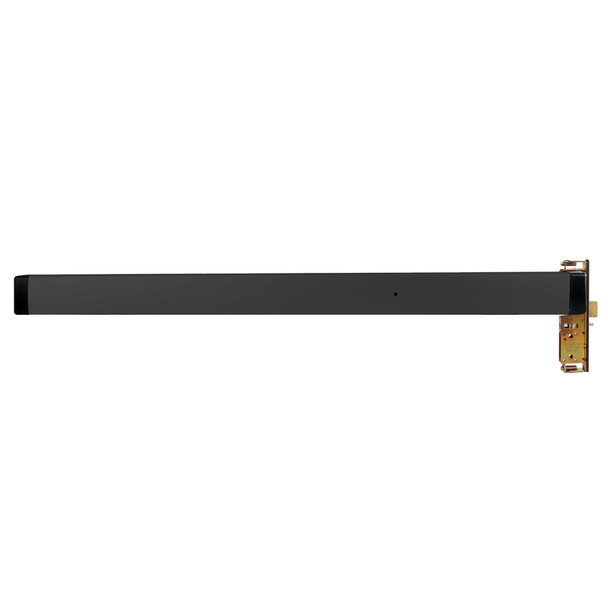

The Adams Rite 8430LR is a mortise exit device designed for narrow stile aluminum doors on RHR (right-hand reverse) openings. It features electric latch retraction for hands-free egress, a 1-1/8" backset, and an extruded aluminum pushbar available in multiple finishes. Ideal for commercial and institutional facilities requiring ADA-compliant emergency exits with enhanced control.
This device fits standard 1-3/4" to 2-1/4" door thickness and adjusts to accommodate doors up to 8 feet tall with bar heights of 30" to 44". The pushbar is field-cuttable and the lever entry trim is field-reversible. For compatibility details, tall door applications, cylinder options, and expert installation guidance, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Adams Rite
- Model: 8430LR-37330
- Type: Mortise Exit Device with Electric Latch Retraction
- Backset: 1-1/8"
- Handing: RHR (Right-Hand Reverse)
- Pushbar Length: 30" standard, field-cuttable
- Pushbar Height Adjustment: 30" to 44"
- Door Thickness: 1-3/4" to 2-1/4"
- Door Height Compatibility: Up to 8 feet (Tall Door Kit available separately)
- Stile Width Minimum: 3-3/4"
- Projection: 2-15/16" (fully projected), 1-15/16" (dogged)
- Material: Extruded aluminum pushbar, anodized finishes available
- Dogging: Standard hex key (cylinder and electric dogging available separately)
- Fasteners: Self-tapping screws standard; Sex Bolt Kits optional
- Cylinder Compatibility: Standard rim cylinders; mortise cylinders with MS cam (1" to 1-1/4" length)
- Warranty: Five year limited
