Description

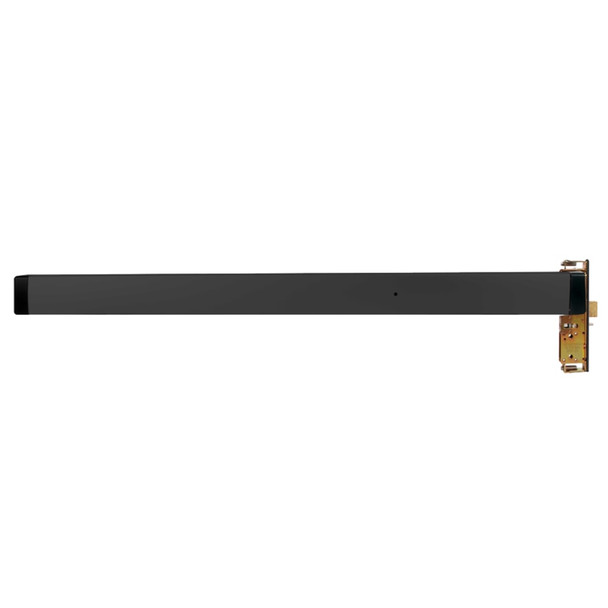

The Adams Rite 8430LR is a mortise exit device designed for narrow stile aluminum doors on commercial and institutional buildings. With 1-1/8" backset and electric latch retraction, it provides secure egress control and meets life safety requirements for RHR (right-hand reverse) applications up to 48" wide openings.
This device fits standard 1-3/4" to 2-1/4" door thickness and adjusts from 30" to 44" bar height, accommodating doors up to 8 ft. tall. The extruded aluminum pushbar is available in multiple finishes. For compatibility, installation, or custom configurations, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance. Includes five-year limited warranty.
Specifications
- Model: 8430LR-37348
- Backset: 1-1/8"
- Application: Narrow Stile Aluminum Doors, RHR
- Pushbar Length: 48"
- Electric Latch Retraction: Yes
- Finish: Black
- Material: Extruded aluminum pushbar
- Bar Height Adjustment: 30" to 44"
- Door Thickness: 1-3/4" to 2-1/4"
- Maximum Door Height: 8 ft. (standard)
- Stile Width: Minimum 3-3/4"
- Projection: 2-15/16" (fully projected), 1-15/16" (dogged)
- Dogging: Hex key standard; cylinder and electric options available
- Warranty: Five-year limited
