Description

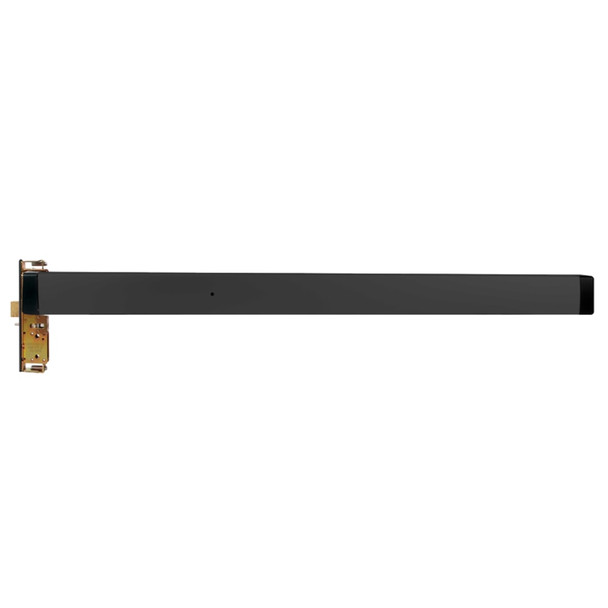

The Adams Rite 8430LR is a mortise exit device engineered for narrow stile aluminum doors on left-hand reverse applications. With 1-1/8" backset and electric latch retraction, it provides reliable emergency egress and access control for commercial buildings, healthcare facilities, and secure entry points where code-compliant panic hardware is essential.
This device fits standard 1-3/4" to 2-1/4" door thickness and adjusts from 30" to 44" bar height, accommodating doors up to 8 feet (taller doors require optional kit). The extruded aluminum pushbar is field-reversible and can be cut to smaller opening widths. As an authorized Adams Rite dealer, E.D. Locks offers expert configuration guidance and cylinder compatibility assistance—contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Brand: Adams Rite
- Model: 8430LR-38330
- Type: Mortise Exit Device
- Backset: 1-1/8"
- Application: Narrow Stile Aluminum Doors, Left-Hand Reverse
- Pushbar Length: 30" (standard; 36", 42", 48" available; field-cuttable)
- Bar Height Adjustment: 30" to 44"
- Door Height: Up to 8 ft standard (10 ft with Tall Door Kit)
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" projected, 1-15/16" dogged
- Pushbar Material: Extruded aluminum, anodized finish
- Latch Function: Electric Latch Retraction
- Dogging: Standard hex key (cylinder dogging optional for 8100 Series; electric dogging available)
- Cylinder Compatibility: Accepts standard Rim cylinder or Mortise cylinder with MS cam (1"-1-1/4" length)
- Door Fasteners: Standard self-tapping screws (optional Sex Bolt Kits available)
- Warranty: Five year limited
