Description

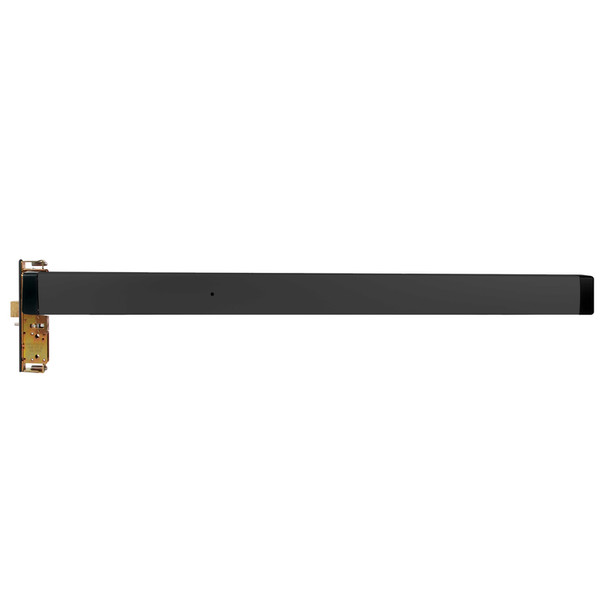

The Adams Rite 8430LR is a mortise exit device engineered for narrow stile aluminum doors on commercial buildings. With 1-1/8" backset and electric latch retraction, it provides secure emergency egress while enabling controlled access. This left-hand reverse unit suits 48" openings and fits standard 1-3/4" to 2-1/4" door thickness, ideal for retrofits and new installations.
The pushbar adjusts 30" to 44" in height and accommodates doors up to 8 feet tall. Lever entry trim is field-reversible for installation flexibility. As an authorized Adams Rite dealer, E.D. Locks offers expert configuration guidance and access to genuine parts. Contact sales@edlocks.com or 1-877-207-6067 for specification confirmation, cylinder selection, and free technical support.
Specifications
- Brand: Adams Rite
- Model: 8430LR-38348
- Type: Mortise Exit Device with Electric Latch Retraction
- Backset: 1-1/8 inches
- Door Type: Narrow Stile Aluminum
- Handing: Left-Hand Reverse (LHR)
- Pushbar Length: 48 inches
- Pushbar Material: Extruded Aluminum
- Pushbar Height Adjustment: 30 to 44 inches
- Door Height Compatibility: Up to 8 feet (standard)
- Door Thickness: 1-3/4 to 2-1/4 inches
- Minimum Stile Width: 3-3/4 inches
- Projection: 2-15/16 inches (fully projected), 1-15/16 inches (dogged)
- Dogging: Standard hex key dogging
- Finish: Black
- Warranty: Five year limited
