Description

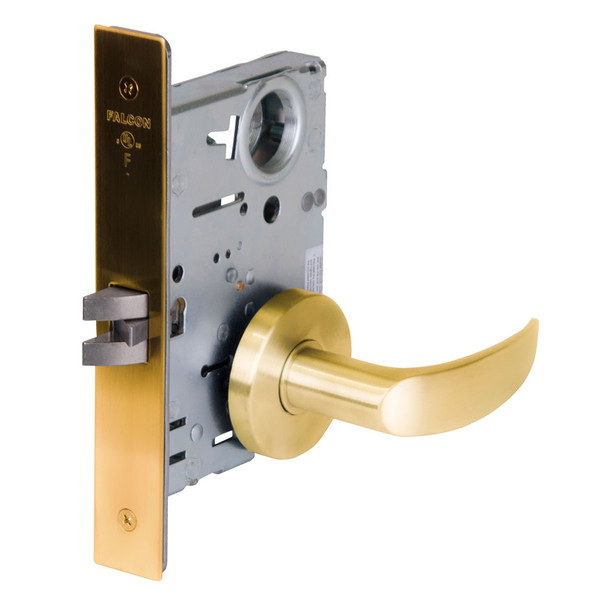

The Falcon MA101 AG 605 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This dependable lock combines security with durability, featuring an interchangeable core (SFIC-compatible) for quick re-keying and field reversibility. Its two-piece stainless steel latch and saw-resistant deadbolt roller withstand constant use without fail.
Built for standard door thicknesses of 1-3/8" to 2-1/2", the MA101 installs easily and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour fire-rating standards. As an authorized Allegion dealer, E.D. Locks provides expert product selection and support. Contact our team at sales@edlocks.com or 1-877-207-6067 for keying options, electrified configurations, or finish specifications.
Specifications
- Brand: Falcon (Allegion)
- Model: MA101 AG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: 3/4" projection, stainless steel
- Deadbolt: 1" throw with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: G keyway standard; A keyway on I/C
- Handing: Right hand standard, left hand optional, reversible
- Faceplate: 1-1/4" x 8" armored brass or stainless steel
- Finish: Stainless steel or brass strike
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
