Description

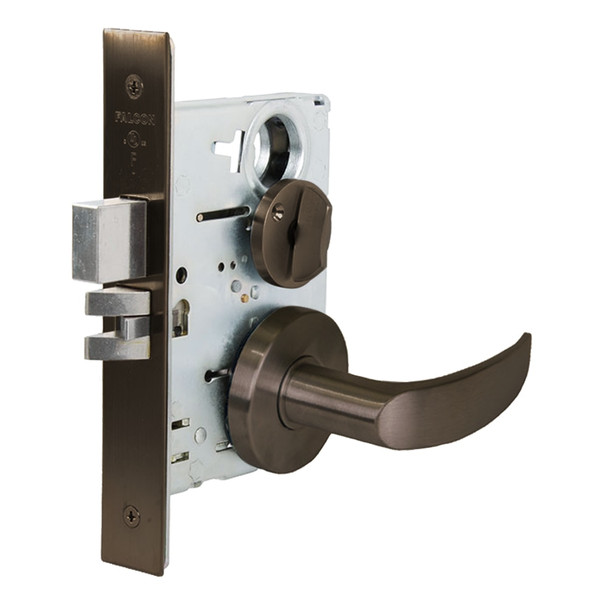

The Falcon MA541P AG 613 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built with cold-formed steel construction and hardened steel components, this ANSI/BHMA Series 1000 lock delivers dependable security and durability under constant use, making it ideal for high-traffic institutional applications.
This lock features an interchangeable core (SFIC-compatible) for fast re-keying and accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and installation support. Contact sales@edlocks.com or 1-877-207-6067 for technical assistance or custom configurations.
Specifications
- Brand: Falcon
- Model: MA541P AG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: 3/4" projection, two-piece stainless steel, mechanical anti-friction
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on I/C
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Handing: Right hand standard, left hand optional, reversible in field
- Finishes: Brass or stainless steel faceplates and strike
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available in 12 or 24 VDC
