Description

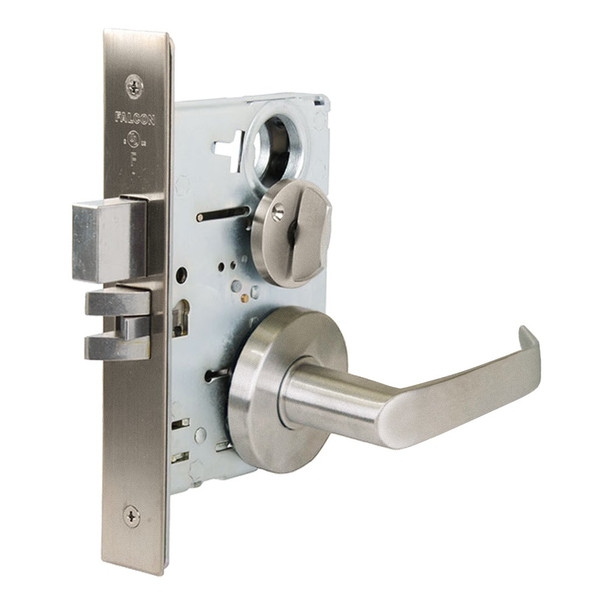

The Falcon MA Series mortise lock delivers high-performance security for commercial offices, hospitals, and educational facilities. This dependable lock is built to withstand constant use and features an interchangeable core for quick re-keying. It accommodates door thickness from 1-3/8" to 2-1/2" and meets ANSI/BHMA 156.13 Series 1000 standards.
The MA571CP6 features a stainless steel latch bolt with 3/4" projection and a 1" dead bolt with saw-resistant rollers. Compatible with SFIC products, it's backed by Allegion's reputation for quality. For expert guidance on keying options, handing, or electrified functions, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: 5, 6, or 7-pin available on standard; 6 or 7-pin on interchangeable core
- Electrified Functions: 12 or 24 VDC available
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
