Description

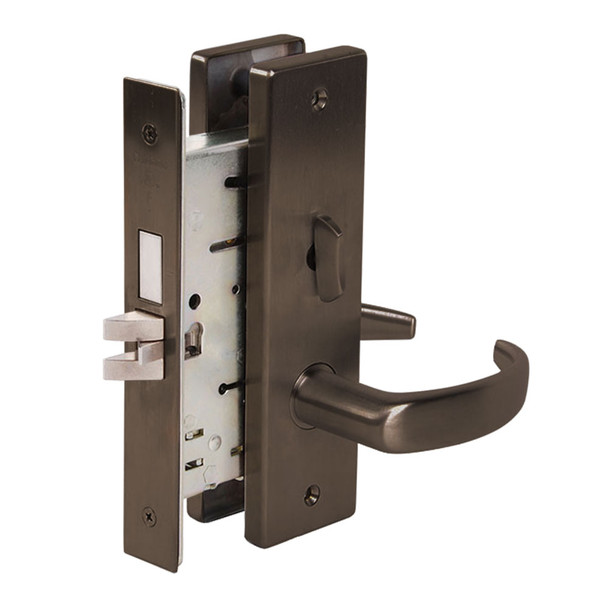

The Falcon MA571L QN mortise lock delivers high-performance security for commercial environments including offices, hospitals, and educational facilities. Built for constant use, this dependable lock features an interchangeable core for quick re-keying and is compatible with SFIC products from other manufacturers, making it ideal for retrofit applications and facilities requiring flexible key management.
The MA571L QN accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keyway selection, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for configuration assistance and competitive pricing.
Specifications
- Brand: Falcon
- Model: MA571L QN 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Includes: Two nickel silver keys standard
