Description

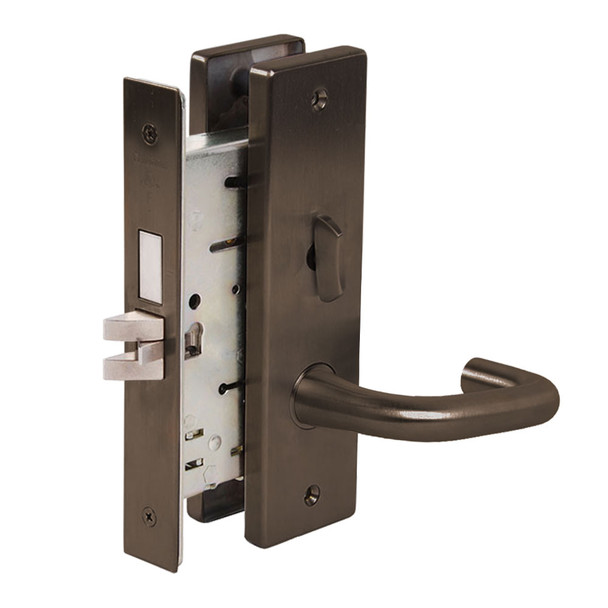

The Falcon MA571L mortise lock delivers high performance security for commercial environments including offices, hospitals, and educational facilities. Built for constant use, this Series 1000 lock features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers, solving durability and security concerns for demanding applications.
The MA571L accommodates doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset and includes an interchangeable core for quick re-keying compatible with SFIC products. Furnished with two nickel silver keys and available in multiple finishes. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing options, and electrified configurations. Contact sales@edlocks.com or 1-877-207-6067 for specifications and support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyways: "G" standard (standard cylinder), "A" standard (interchangeable core)
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Series 1000, meets 156.13
- UL Rating: 3 hour A label
- Includes: Two nickel silver keys
