Description

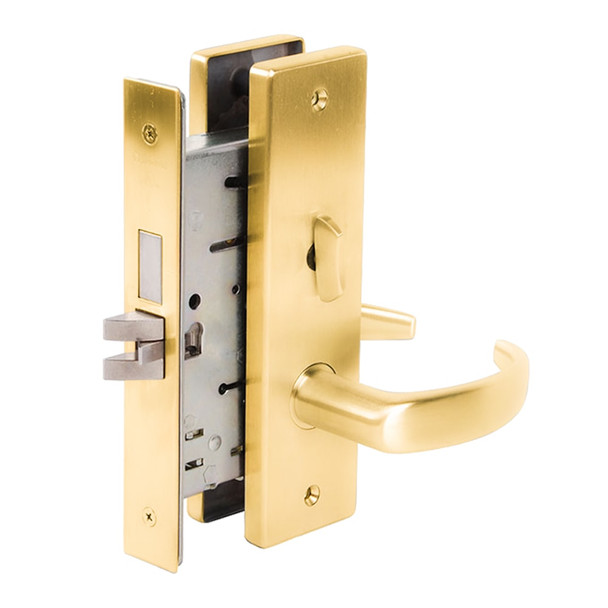

The Falcon MA571L is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built on Falcon's proven MA Series platform, it delivers dependable security and withstands constant daily use without compromise. The interchangeable core design enables quick re-keying in the field, while SFIC compatibility simplifies maintenance across multi-manufacturer installations.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. Installation is straightforward with reversible field handing and bind-resistant trim for proper alignment. As an authorized Falcon dealer, E.D. Locks provides expert support, competitive pricing, and access to factory specifications. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and electrified configurations.
Specifications
- Brand: Falcon (by Allegion)
- Model: MA571L QN 605
- Lock Type: Mortise, Commercial Grade
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case Material: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Hubs: Hardened steel
- Cylinder: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on I/C core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Handing: Right hand standard; left hand optional, reversible in field
- Keys Furnished: Two nickel silver keys standard
- Electrified: Available in 12 or 24 VDC
- Finish: Satin Stainless Steel (605)
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
