Description

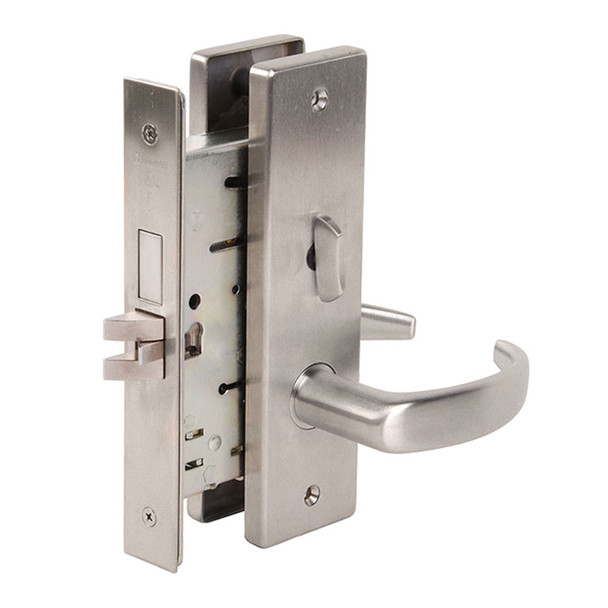

The Falcon MA571L QN 630 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. This heavy-duty lock combines security with reliability, featuring a two-piece stainless steel latch bolt and a 1-inch throw dead bolt with saw-resistant rollers, solving the need for durable access control that withstands constant use without failure.
The MA571L accommodates door thicknesses from 1-3/8 to 2-1/2 inches and offers interchangeable core (I/C) capability for quick re-keying compatible with SFIC products. Available in standard or electrified functions (12/24 VDC). As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing options, and finishes. Contact our team at sales@edlocks.com or 1-877-207-6067 for specifications and pricing support.
Specifications
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inches only
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin on I/C cylinder
- Keyways: G keyway standard; A keyway on I/C cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with hardened steel roller
- Faceplates: 1-1/4 by 8 inches, brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
