Description

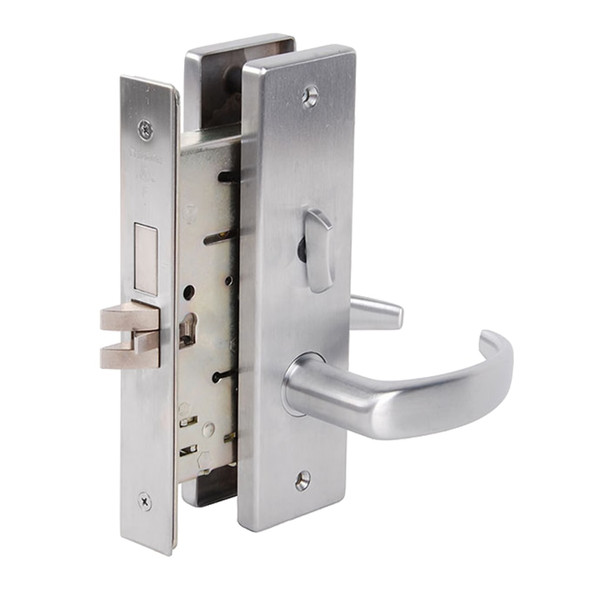

The Falcon MA571L is a commercial mortise lock engineered for offices, hospitals, schools, and other high-traffic facilities. This dependable lock combines robust security with interchangeable core technology for quick re-keying, making it ideal for facilities managers who need reliable performance without constant maintenance headaches.
The MA571L accommodates standard door thicknesses of 1-3/8" to 2-1/2" and works with SFIC products from other manufacturers. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for custom configuration and fast shipping on orders over $450.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Series 1000 (156.13)
- UL Rating: 3 hour A label
