Description

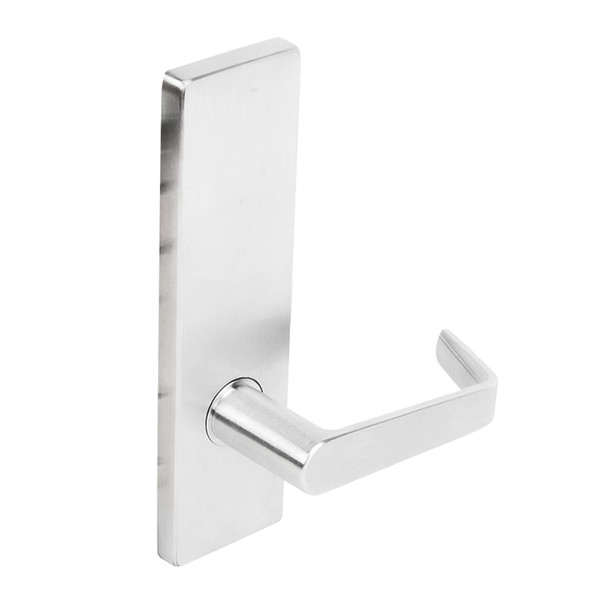

The Falcon TP65E D 625 is a mortise lock engineered for high-performance commercial use in offices, hospitals, and educational facilities. Built on the proven MA Series platform, this lock combines dependable security with durability designed to withstand constant daily use without compromising function or reliability.
The TP65E D 625 accommodates standard door thicknesses from 1-3/8" to 2-1/2" and features an interchangeable core (SFIC compatible) for quick re-keying. Right-hand handing is standard; left-hand is optional and field-reversible. As an authorized Falcon dealer, E.D. Locks provides expert guidance on cylinder options, keyways, and electrified configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support and fast delivery.
Specifications
- Brand: Falcon
- Model: TP65E D 625
- Lock Type: Mortise
- Series: MA Series
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, field-reversible
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway standard cylinder, A keyway SFIC
- Keys Furnished: Two nickel silver keys standard
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA Certification: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
