Description

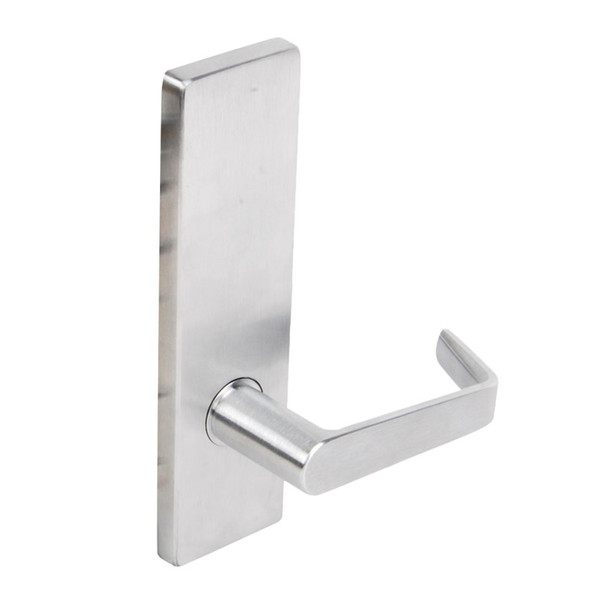

The Falcon TP65E D 626 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines security with dependability, featuring a mechanical anti-friction latch bolt and a 1-inch throw dead bolt with saw-resistant rollers. Built to withstand constant use, it solves the challenge of finding reliable, affordable access control for high-traffic doors.
The lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features an interchangeable core (SFIC compatible) for quick re-keying without lock removal. Installation is straightforward with standard 2-3/4" backset and field-reversible handing. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and finish selection. Contact our team at sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Brand: Falcon (by Allegion)
- Model: TP65E D 626
- Type: Mortise Lock, MA Series
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, field reversible
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers (13/16" diameter)
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Finish Options: See Falcon finishes chart
- Keys Supplied: Two nickel silver keys standard
