Description

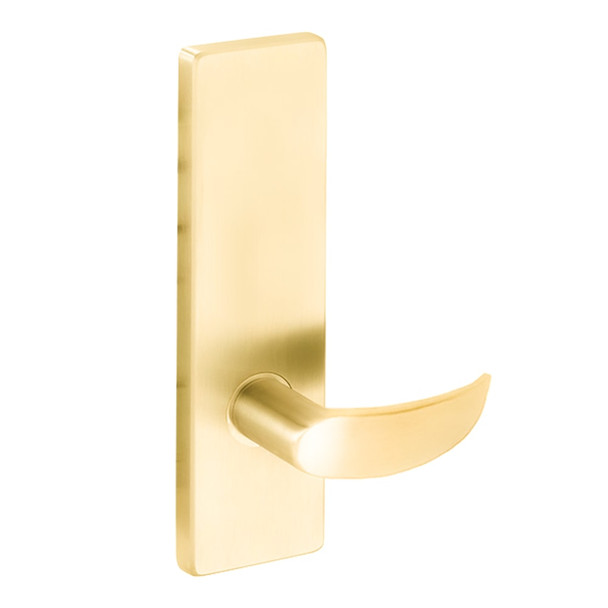

The Falcon TP95E A 605 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This MA Series lock combines affordability with durability, featuring a two-piece stainless steel latch bolt, 1-inch dead bolt with saw-resistant rollers, and interchangeable core capability for fast re-keying without removing the lock from the door.
The TP95E A 605 fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards with a 3-hour UL A label rating. Backed by Allegion and compatible with SFIC products, this lock is ideal for retrofit projects. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified configurations, and installation support.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw, stainless steel with hardened steel roller guards
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: 156.13 Series 1000
- UL: 3 hour A label
