Description

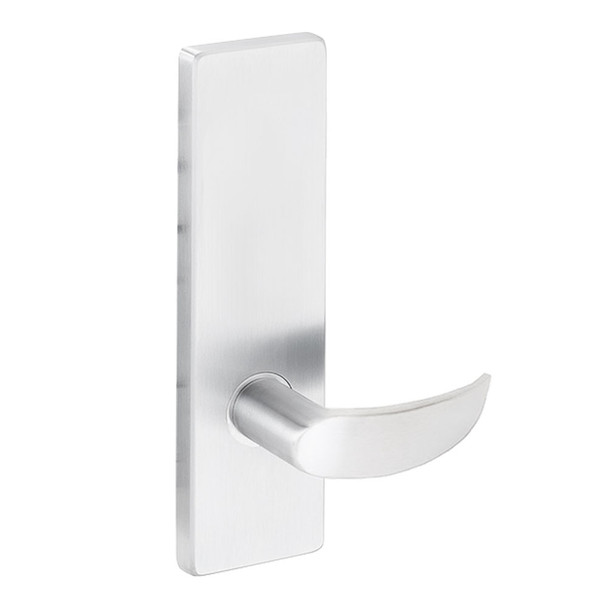

The Falcon TP95E A 625 is a mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines robust security with dependable performance, featuring an interchangeable core for quick re-keying and compatibility with SFIC products from other manufacturers, solving the need for flexible, durable access control.
The TP95E accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label ratings. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying options, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance with your commercial project.
Specifications
- Brand: Falcon
- Model: TP95E A 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Cylinder: Solid brass, 5, 6, or 7-pin available
- Keyways: "G" keyway standard; "A" keyway on I/C cylinder
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right hand standard; left hand optional, reversible
