Description

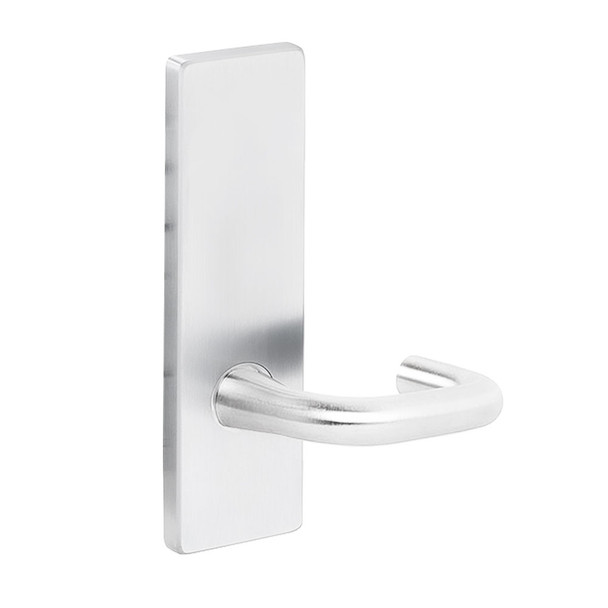

The Falcon TP95E S 625 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines affordability with dependable security, featuring a two-piece stainless steel latch bolt, saw-resistant dead bolt rollers, and cold-formed steel construction that withstands constant daily use without compromise.
The TP95E S 625 accommodates doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset and features an interchangeable core (SFIC-compatible) for quick re-keying. Installation is straightforward on standard frames meeting ANSI A115.1. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, handing, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinder: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" (standard cylinder), "A" (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel
- Strike: Brass or stainless steel, non-handed
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Series 1000
- UL Rating: 3 hour A label
