Description

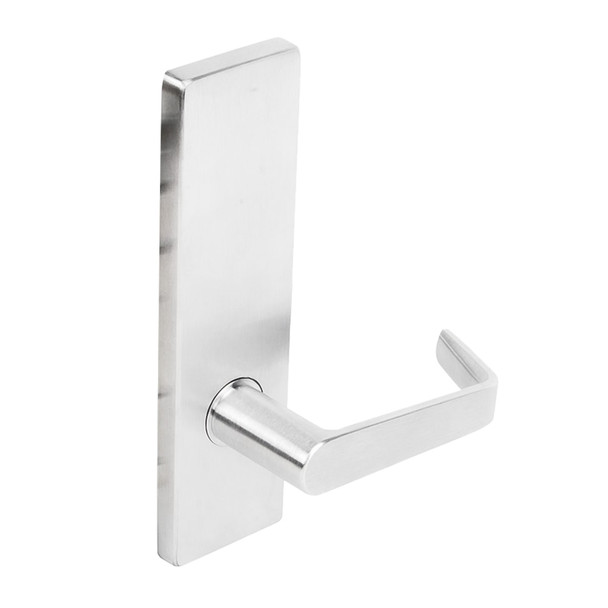

The Falcon TP95E D 625 is a mortise lock built for high-traffic commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines dependable security with interchangeable core technology, allowing quick re-keying without removing the lock from the door. Its heavy-duty construction handles constant use in demanding applications.
The TP95E D 625 fits standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour A label ratings. It's compatible with SFIC products from other manufacturers. For expert guidance on installation, keying options, or electrified configurations, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Keys: Two nickel silver keys furnished standard
