Description

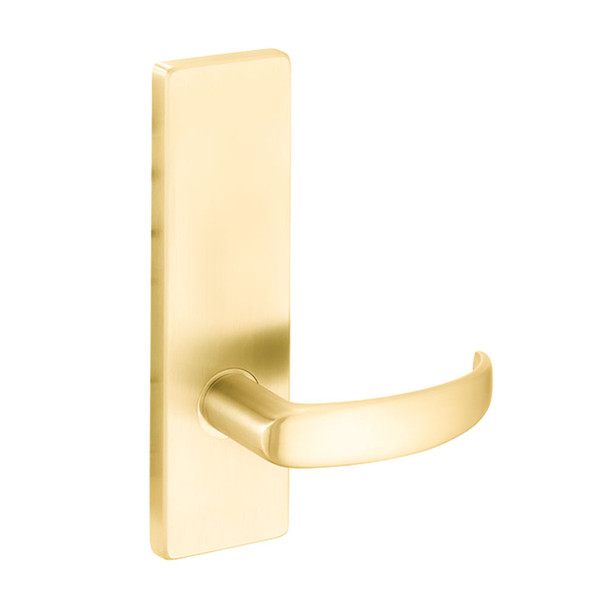

The Falcon TP95E Q 605 is a heavy-duty mortise lock built for high-traffic commercial environments including offices, hospitals, and educational facilities. Engineered for constant use without failure, this Series 1000 lock combines security with durability and features an interchangeable core (SFIC-compatible) for quick re-keying and maintenance.
Fits standard door thickness 1-3/8" to 2-1/2" with 2-3/4" backset. Right-hand handing is standard; left-hand and field-reversible options available. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying, handing, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration for your project.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Cylinders: Solid brass, 5, 6 or 7-pin available
- Keyways: G keyway standard (A keyway on I.C. cylinder)
- Hubs: Hardened steel
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Furnished with two nickel silver keys
